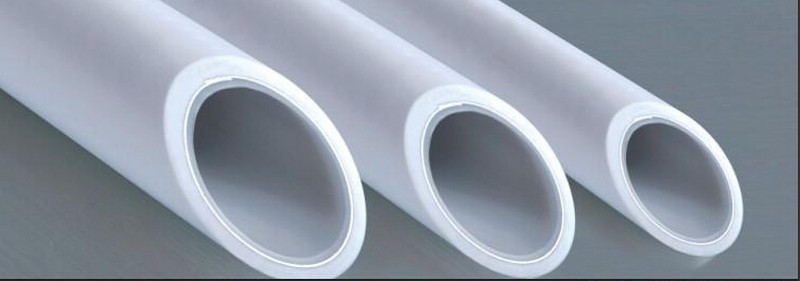

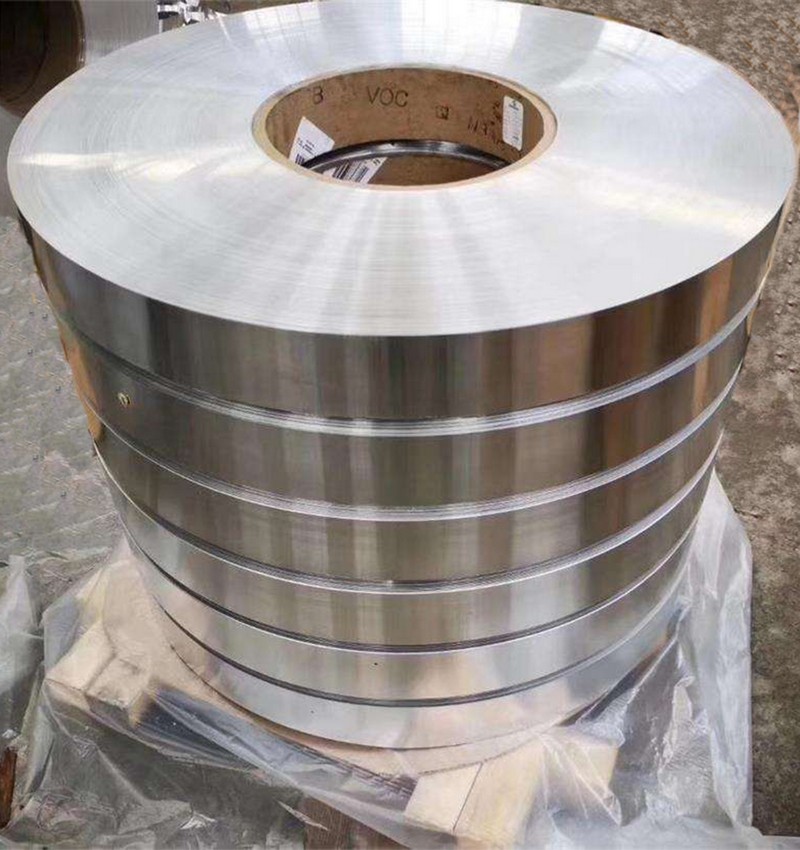

Aluminum Strip for PPR Pipe/ Aluminum Strip Coated with Polypropylene for PP-R Pipe (Single/Double Side)
Product specification
It can make the pipe prevent oxygen molecules from entering the water pipe, and prevent the inner wall of the pipe from growing green moss due to oxygen.
More pressure-resistant and more stable;
More resistant to high temperature;
Lightweight and easy to install
| Aluminum Thickness
|
0.150mm/0.120mm
（tolerance±0.02mm） |
| Aluminum Width
|
Max 600mm
（tolerance±0.4mm） |
| Roll length | 1300m～2600m |
| Inner Roll Diameter | 150mm—152mm |
| Alloy No. | 3005、3003、8011 |
| Coating Thickness/each side | 0.04mm、0.05mm |
| Coating method | Single Side/Double Side |
| Coating Material | Polypropylene |
| Tensile strength | 120-165N/mm |
| Peel Strength | ≥6N/15mm |
| Elongation | EN546（≥12%） |
| Vickers Hardness | 20-27 |
| Resin Binder | QF551/MITSUI |
1. Cold and hot water systems of buildings, including central heating systems;
2. Heating systems in buildings, including floors, siding and radiant heating systems;
3. Direct drinking pure water supply system;
4. Central (centralized) air conditioning system;
5. Industrial pipeline systems such as transporting or discharging chemical media.
