Plastic-lined steel pipes are made of ordinary carbon steel pipes as the matrix, lined with thermoplastics with excellent chemical stability.
It not only retains the strength of the steel pipe and the traditional connection method, but also gives full play to the characteristics of the plastic material such as corrosion resistance, anti-aging, high wear resistance, non-rust, non-toxic, and smooth inner wall through different modifications of the plastic material.
Product specification
The modified corrosion-resistant plastic-lined steel pipe is an alternative product for industrial pipes in petroleum, chemical, electric power, coal, ships, docks and other industries.

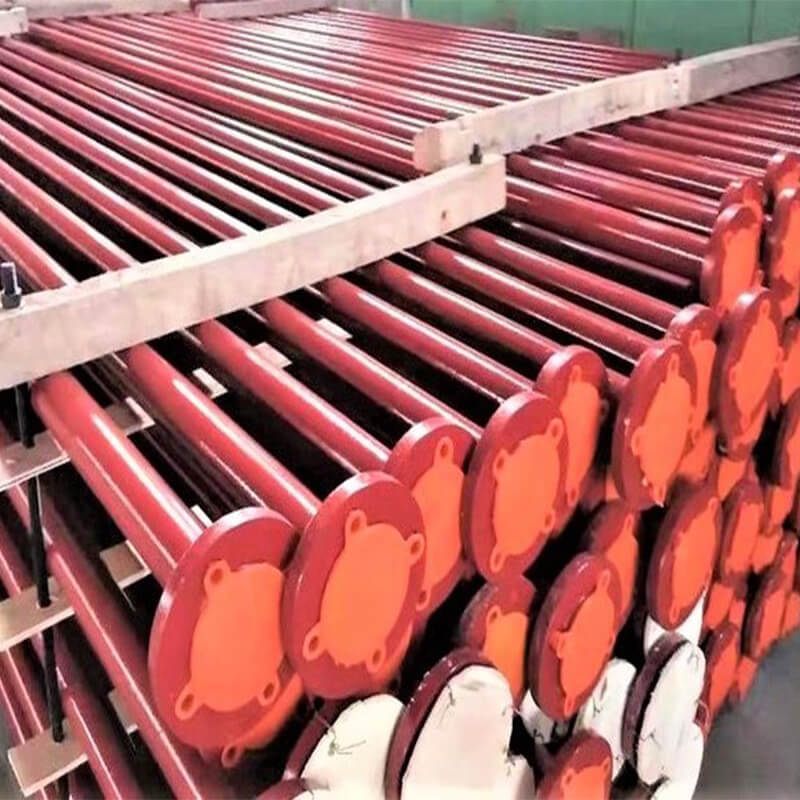

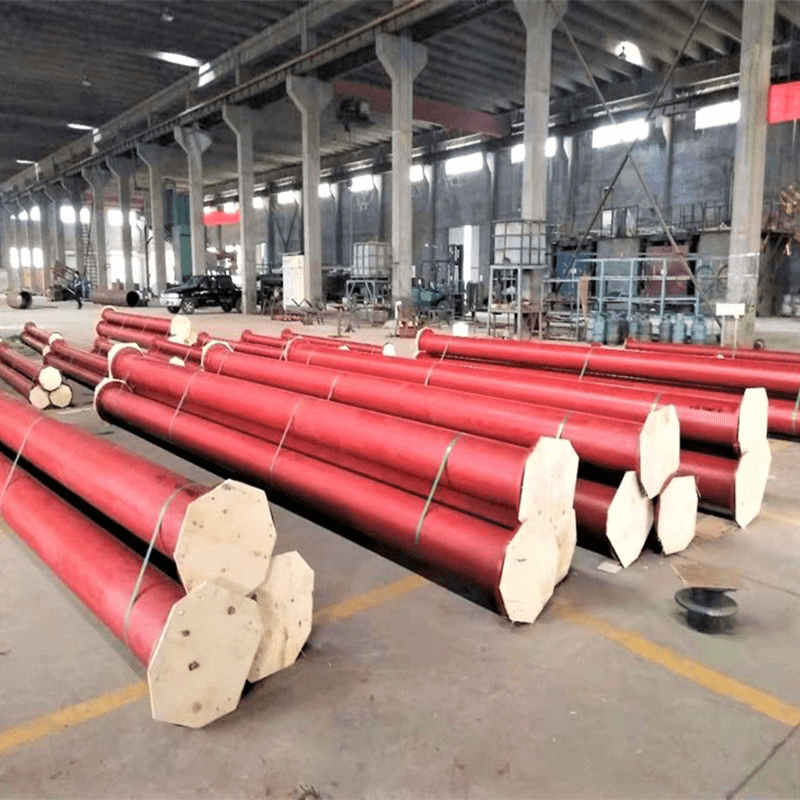

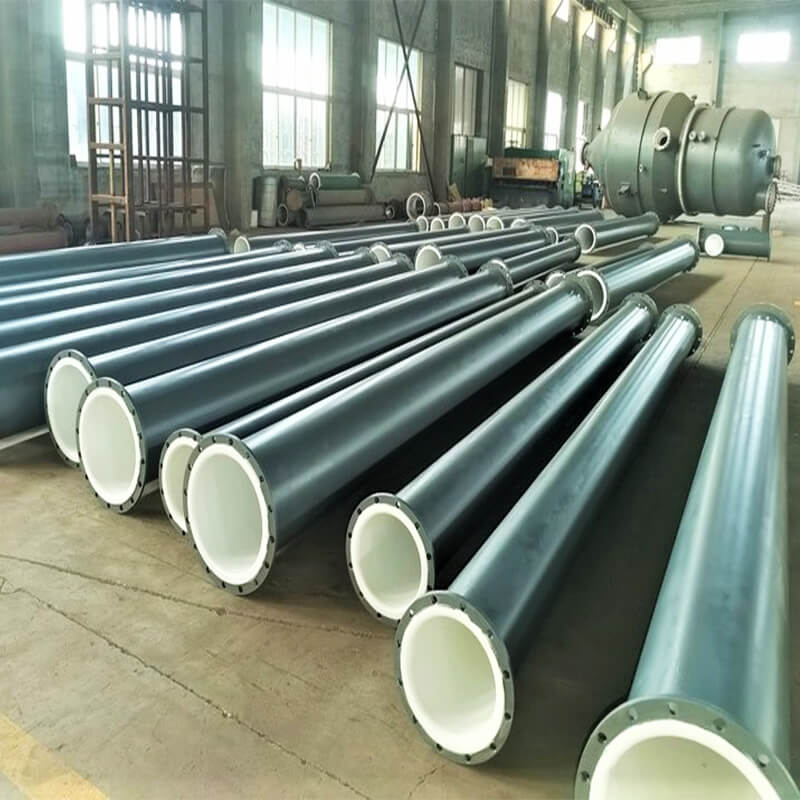

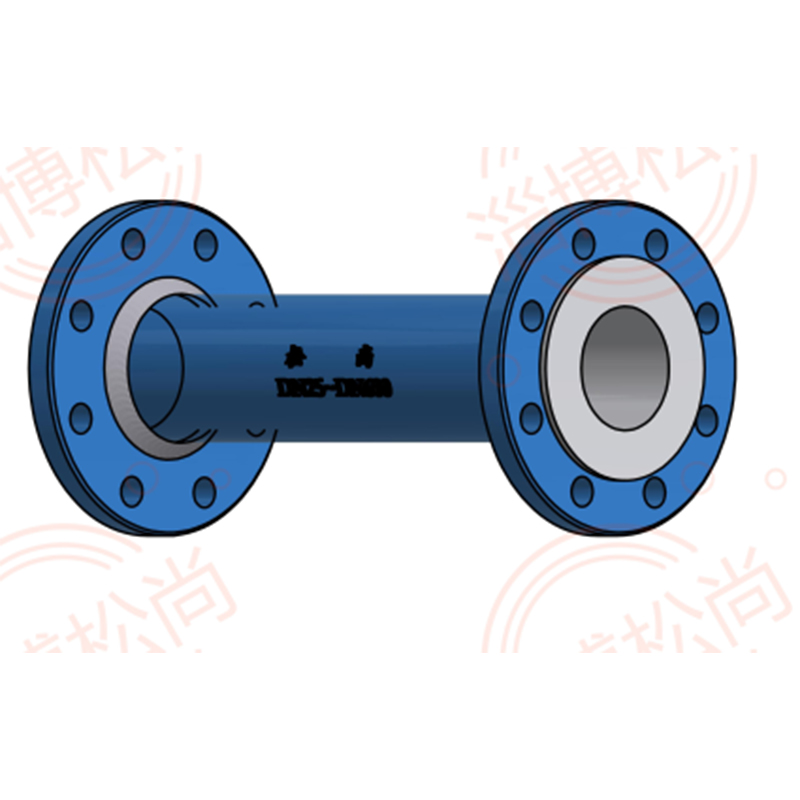

The PO/PP/PE lined pipes can be manufactured as straight pipes, elbows, tees, crosses, and reducers. And other specific dimensions can be supplied on request.
Nominal Diameter:
·DN25-DN600
Operating Temperature：
·-20~105℃（PP）
·-15~65℃（PVC）
·-20~80℃（PE）
·-15~110℃（PO）
Operating Pressure：
·-0.05-2.5MPa
Materials:
·Carbon steel
·Stainless steel
Lined Materials:
·PO/PP/PE
Flange Dimensions:
·ASME B16.5 Class 150
Flange Options:
·HG, GB, JB, JIS, BS, DIN, ANSI, ASTM
Applicable medium:
Acid, alkali, salt, corrosive gas and liquids, etc.

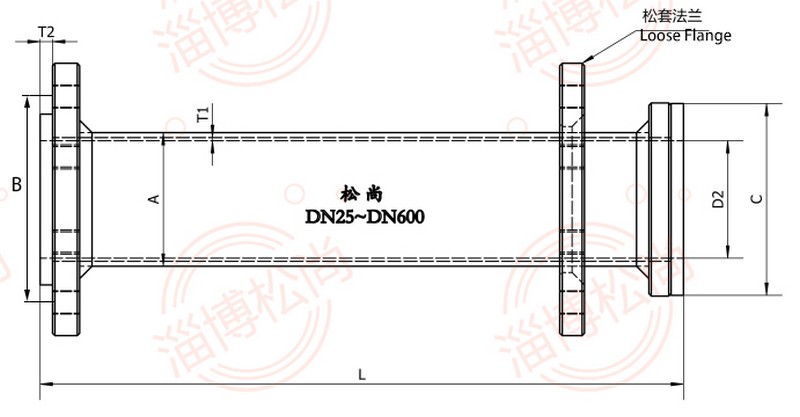

| Nominal Diameter | Steel Pipe diameter | Liner thickness | Flange lining plastic surface outer diameter | Length |
| DN25 | φ32 | 1.5-2 | 68 | 100mm—6000mm |
| DN32 | φ38 | 1.5-2 | 78 | 100mm—6000mm |
| DN40 | φ48 | 1.5-2 | 88 | 100mm—6000mm |
| DN50 | φ57 | 2-2.5 | 102 | 100mm—6000mm |
| DN65 | φ76 | 2-2.5 | 122 | 100mm—6000mm |
| DN80 | φ89 | 2-2.5 | 138 | 100mm—6000mm |
| DNl00 | φ108 | 2.5-3 | 158 | 100mm—6000mm |
| DNl25 | φ133 | 2.5-3 | 188 | 100mm—6000mm |
| DNl50 | φ159 | 2.5-3 | 212 | 100mm—6000mm |
| DN200 | φ219 | 2.5-3 | 268 | 100mm—6000mm |
| DN250 | φ273 | 3-3.5 | 320 | 100mm—6000mm |
| DN300 | φ325 | 3-3.5 | 370 | 100mm—6000mm |
| DN350 | φ377 | 3-3.5 | 430 | 100mm—6000mm |
| DN400 | φ426 | 3.5-4 | 485 | 100mm—6000mm |
| DN450 | φ477 | 3.5-4 | 532 | 100mm—6000mm |
| DN500 | φ520 | 3.5-4 | 585 | 100mm—6000mm |
| DN600 | φ630 | 4-5 | 685 | 100mm—6000mm |
