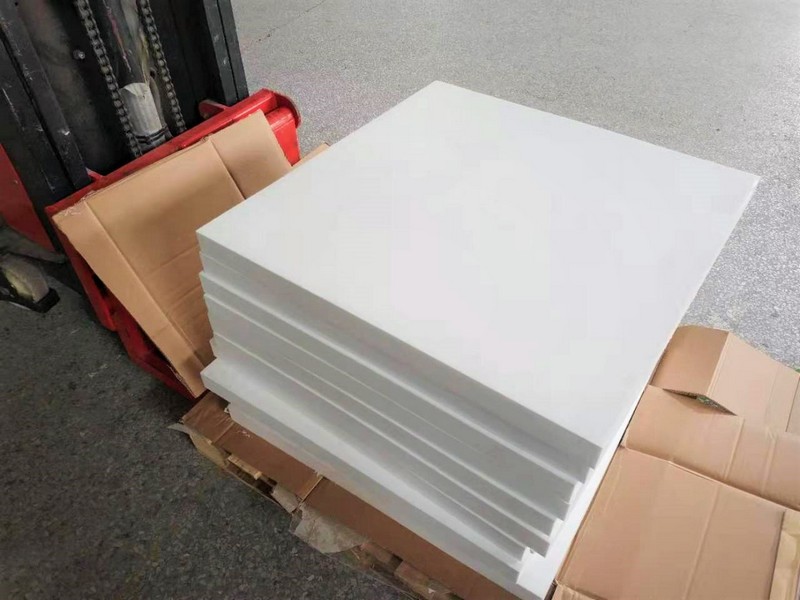

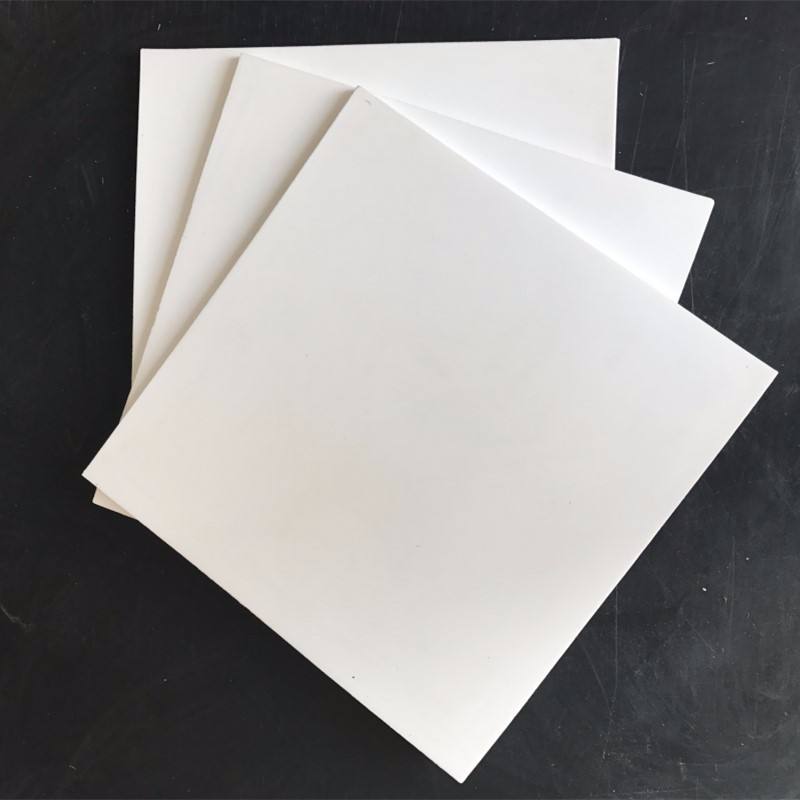

PTFE molded sheet is made of PTFE resin by molding at room temperature, and then sintered and cooled. The PTFE molded sheet is suitable for the temperature of -180℃~+250℃.
It is mainly used as an electrically insulating material and lining contacting corrosive medium, supporting slider, rail seal, and lubricating material.
Product specification
High and low-temperature resistance (-192 ℃-260 ℃),
Corrosion resistance (strong acid, strong alkali, aqua regia, etc.)
Weather resistance
High insulation
High lubrication
Non-adhesion
Non-toxic
| Length(mm) | Width(mm) | Thickness(mm) | Tolerance(mm) |
| 300 | 300 | 1-100 | 0-15% |
| 500 | 500 | 1-100 | |
| 600 | 600 | 1-100 | |
| 1000 | 1000 | 1-100 | |
| 1200 | 1200 | 1-100 | |
| 1500 | 1500 | 1-100 | |
| 2500 | 2500 | 1-100 |
Other dimensions can be supplied on request.
Widely used in chemical, pharmaceutical, dye industry containers, storage tanks, reaction towers, anti-corrosion lining materials for large pipelines; aviation, military, and other heavy industries; machinery, construction, transportation bridge sliders, guide rails; printing and dyeing, light industry, textile industry anti-sticking materials, etc.
